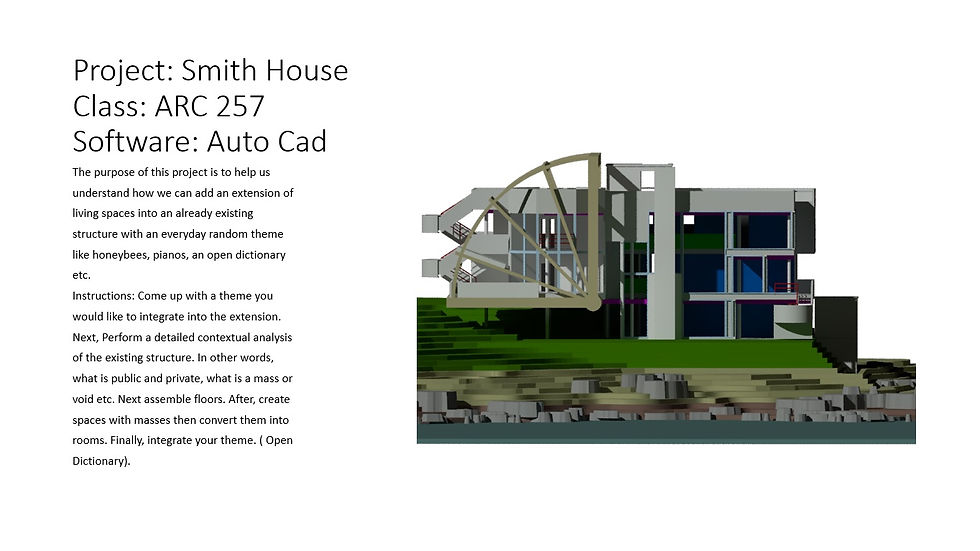

ARC257 CONTEXTUAL FIT PROJECT

Photo Credit: Cary (2018). Richard Meier’s Iconic Smith House in Connecticut Hits Market for $14.5 Million. Mansion Global

CONTEXUAL FIT

I was given the opportunity by the Smith Family to design and build an extension of their home. The extension will consist of a Family room, Exercise room, and a Master bedroom with a Master bathroom. The Smiths request to integrate a duplex design between the exercise and Master Bedroom only. In addition, The Smiths also request a private study be included as well. They want a place where they and their children can focus and work in a quiet and distraction free environment.

Hierarchy: Family Room

Meta Idea: Open Dictionary

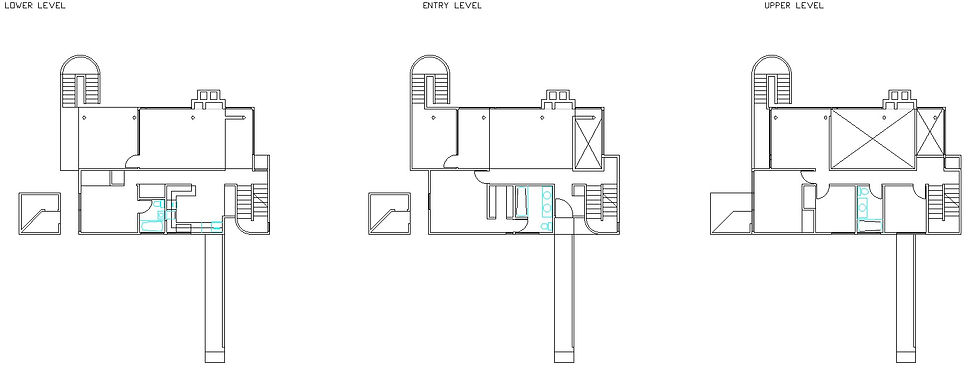

Existing Floor Plans

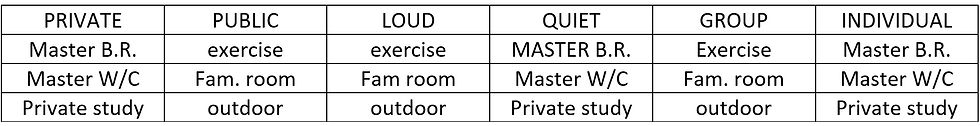

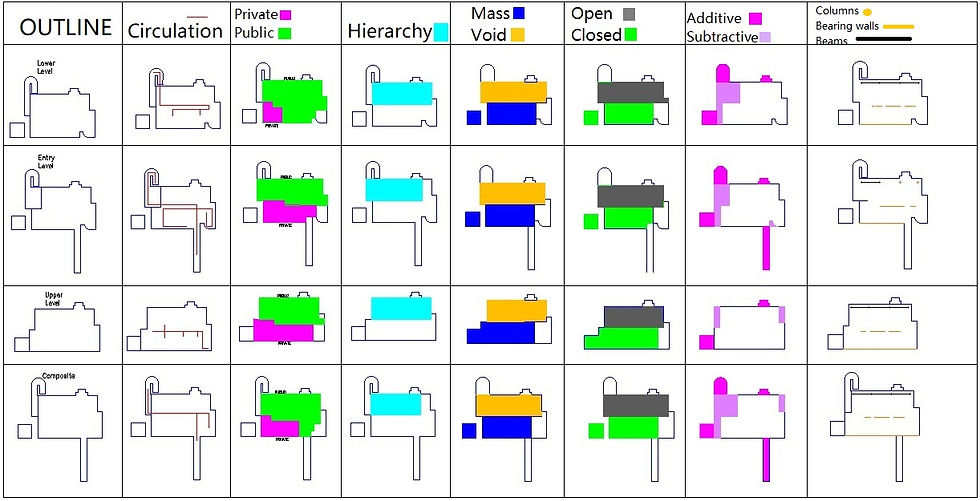

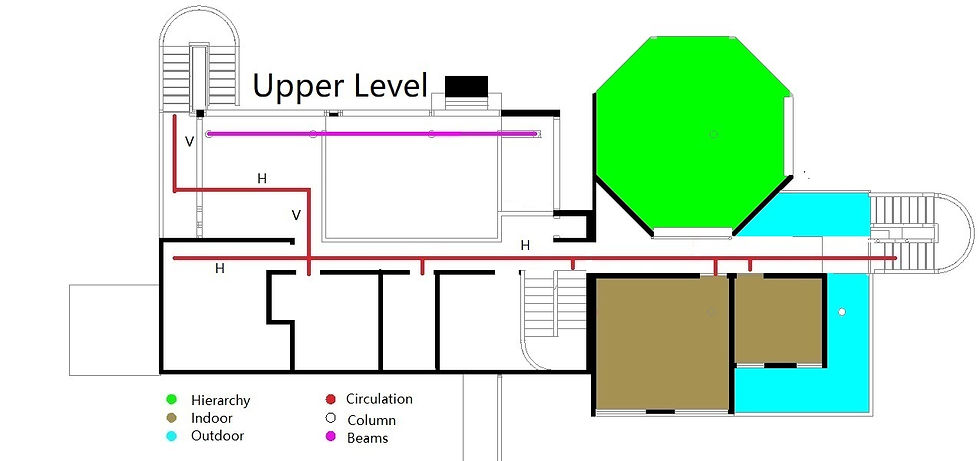

The Breakdown Of Spaces

New Additions

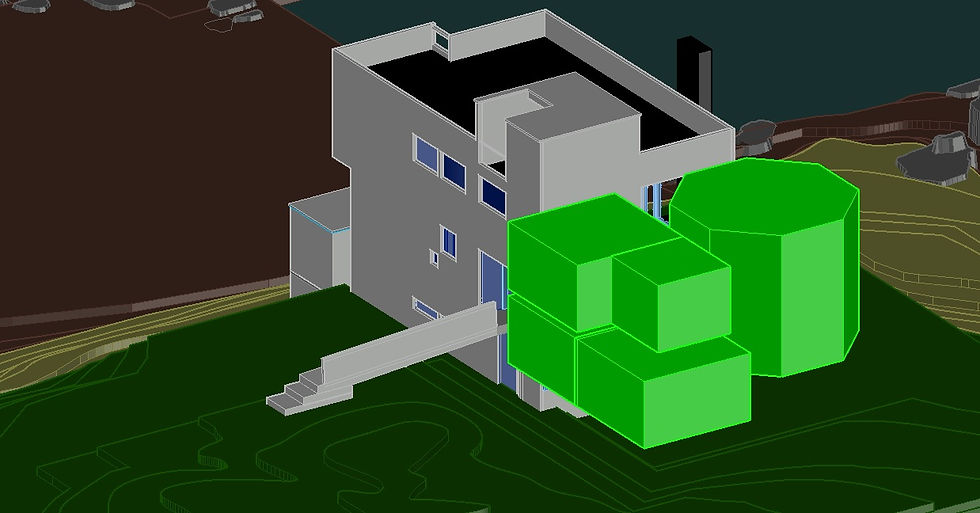

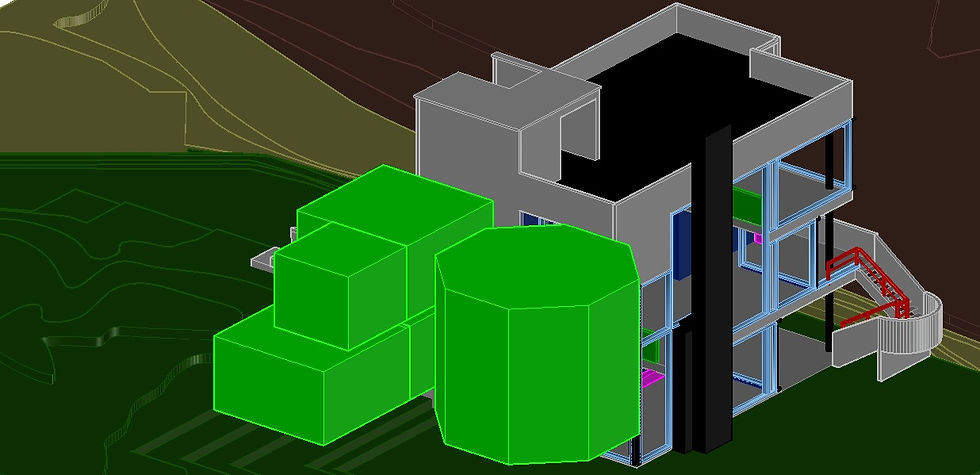

Massing

Animation

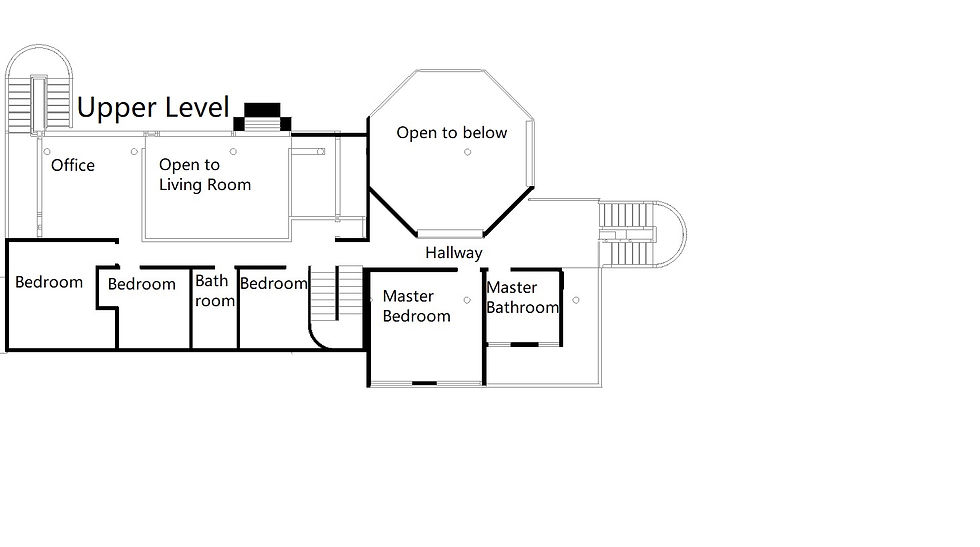

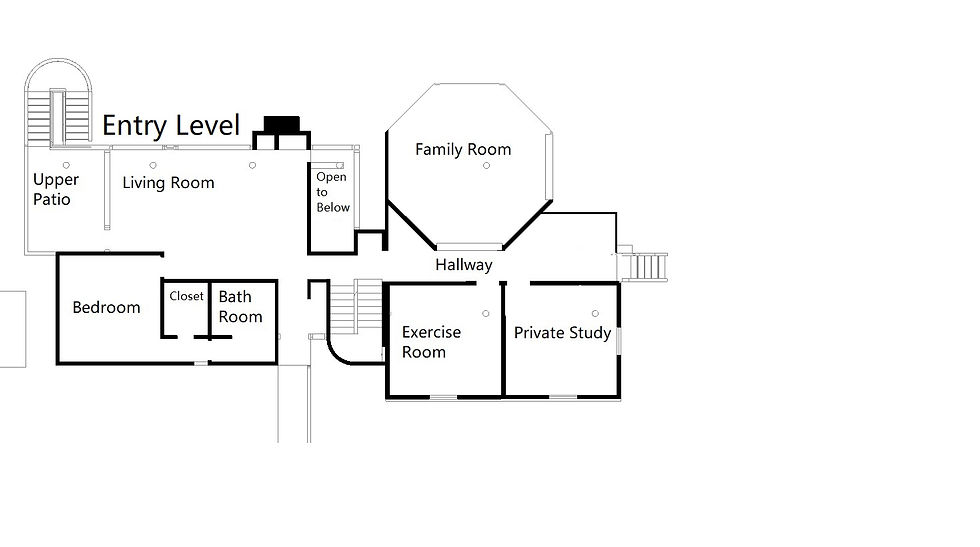

Floor Plans

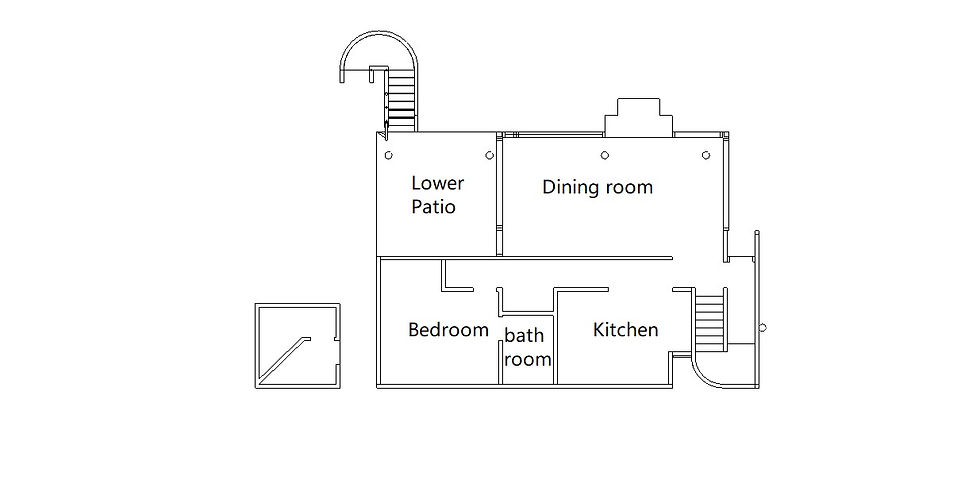

Lower Level

Split Section

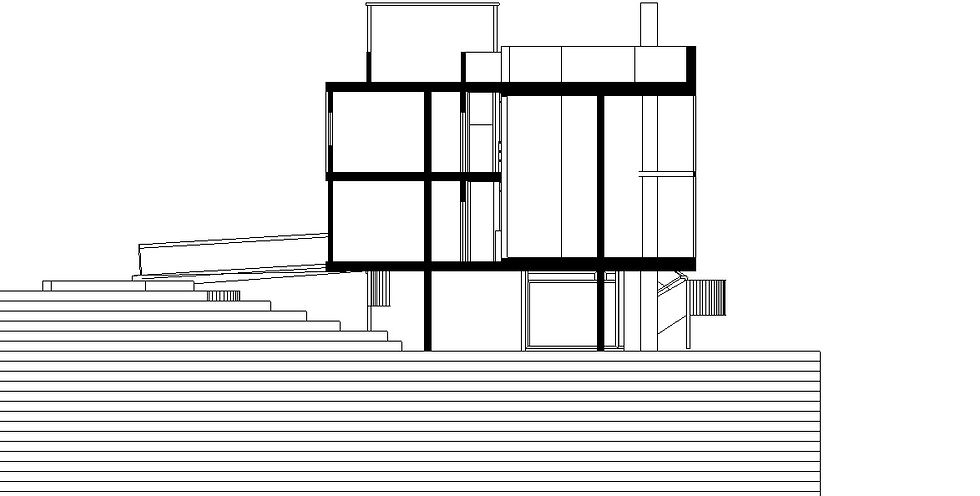

Section Views

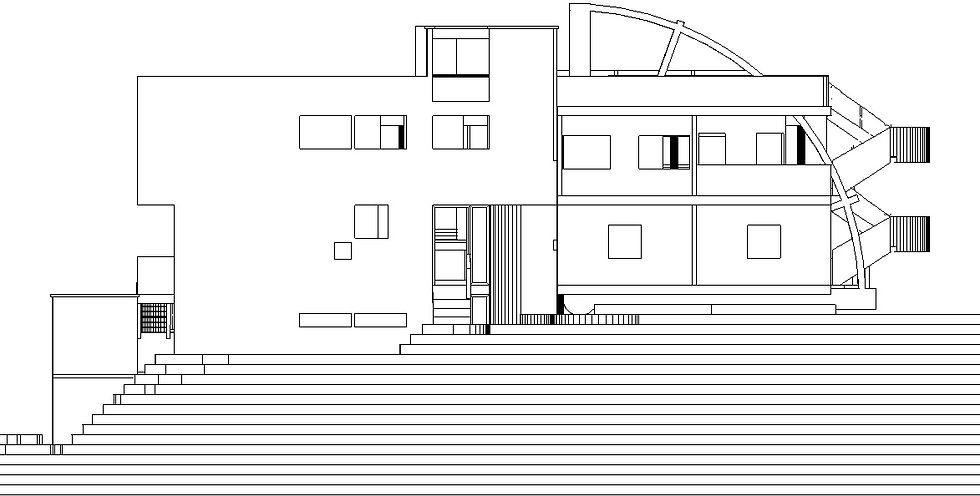

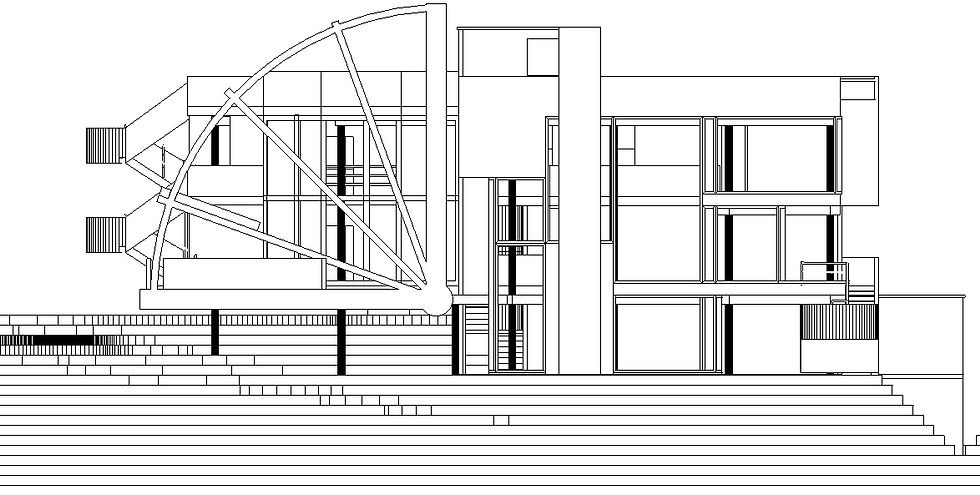

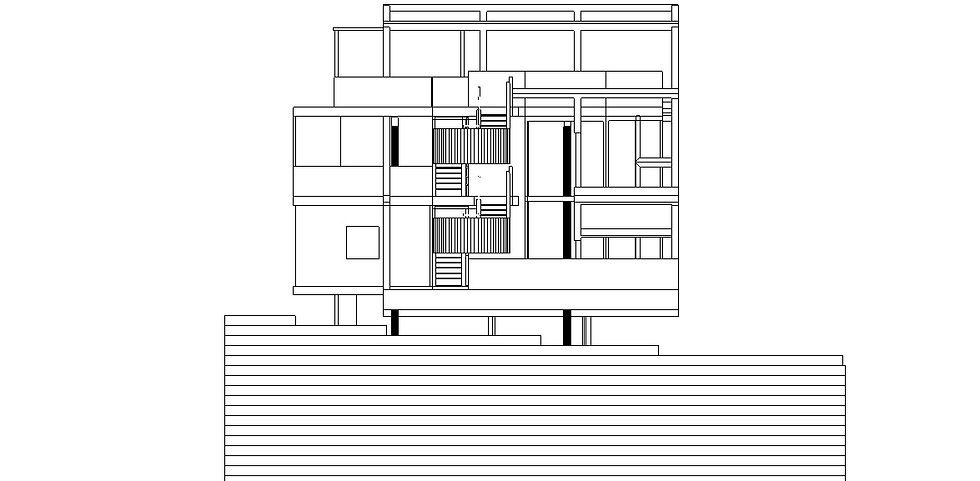

Elevations

Interior Views

Exterior Views
